Price: SAR91.92
(as of Jun 16, 2026 05:53:36 UTC – Details)
1. Works with 2pcs 606090 or 706090 batteries, 8000mAh or 10000mAh large capacity is easy to obtain, you can easily charge for your phone anytime and anywhere.
2. Supports solar fast charge, safe and environmental friendly, suitable for sport, travel, and other outdoor activities.
3. Provides dual USB ports, you can easily charge for two devices at the same time, or share this backup power with your families or friends.
4. IP6 waterproof protection and printed circuit board assembly, fully protect your devices from water, overload, overcharge, overheat and short‑circuit while charging.
5. Environmental friendly and power saving, automatically enter sleep mode and lock the power while not in use.
Spec:
Note:
This is an assembling kit of solar power bank, NOT a whole power bank, you need to install it by yourself.
This power band must work with 606090/ 706090 battery, battery is not included.
Please fully charge this power bank before first using it.
Description:

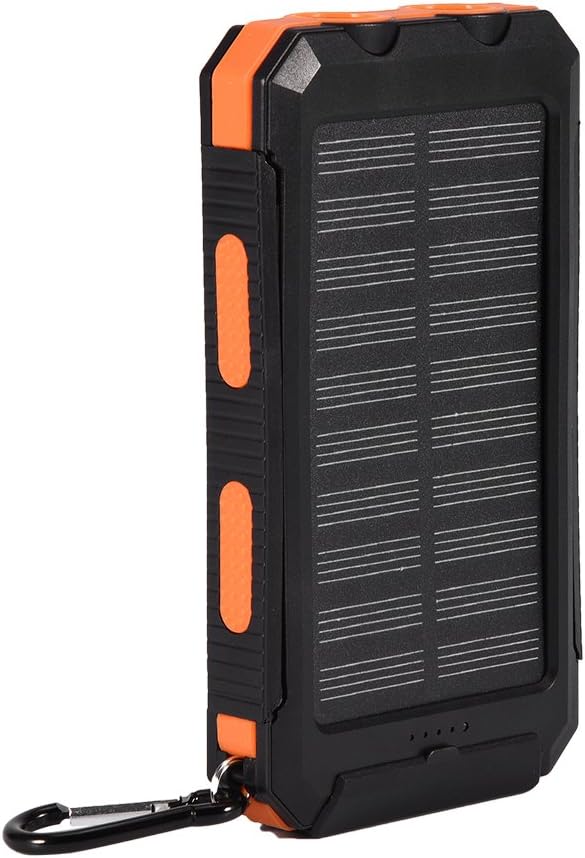

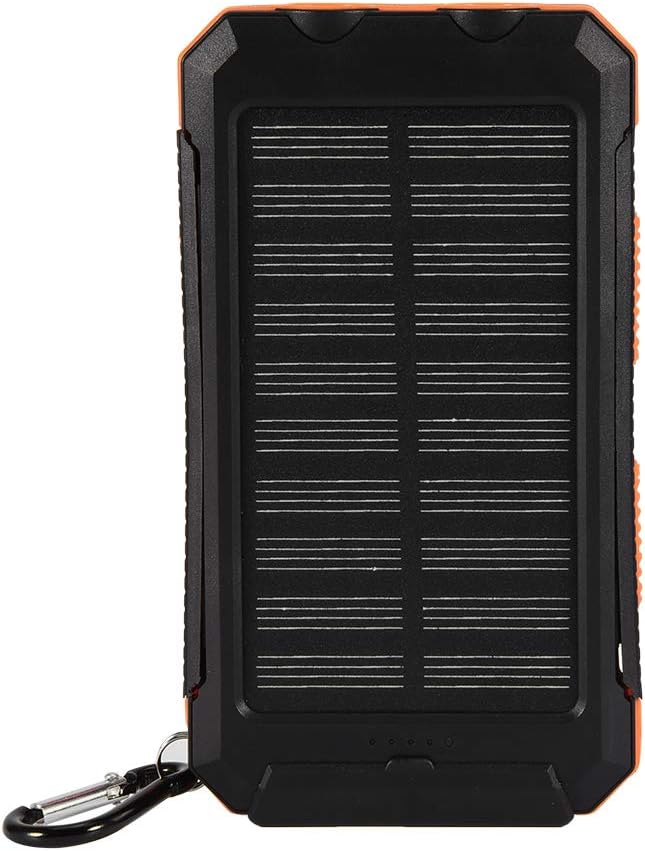

This is a DIY kit of portable solar powerbank, which allows fast and safe charge for mobile phones. It can effectivelyconvert the solar energy into electric energy and store in battery for all-dayuse. IP6 waterproof design, fully protects your devices. Equipped with acompass, suitable for sport, travel, and other outdoor activities.
Features:
Works with 2pcs 606090 or 706090 polymerbatteries, 8000mAh or 10000mAh large capacity is easy to obtain, you can easilycharge for your phone anytime and anywhere.
Supports solar fast charge, safe and environmentalfriendly, suitable for sport, travel, and other outdoor activities.
Provides dual USB ports, you can easilycharge for two devices at the same time, or share this backup power with yourfamilies or friends.
IP6 waterproof protection and printedcircuit board assembly, fully protect your devices from water, overload,overcharge, overheat and short-circuit while charging.
Environmental friendly and power saving, automaticallyenter sleep mode and lock the power while not in use.
With a mini precise compass, never worry aboutlosing your way.
Dual high brightness lights, you can use itfor lighting at night.
With a metal hook, only need to hang thissolar charger on your bag for power storage, release your hands .
Specifications:
Material: Plastic + Silicone
Color: Black + Blue, Black +Green, Black +Black, Black + Orange (Optional)
Battery: 2 PCS 606090/ 706090 Batteries (NOT Included)
USB Port Quantity: 2
USB Output: 5V 1A/ 2A
Power Capacity: 8000mAh/ 10000mAh
Waterproof: IP6
Size: Approx. 138 * 76 * 20mm
Package Weight: 80g
How to Use:
1. On the circuit board, B- is connected to the negative electrode of the battery, and B+ is the positive electrode of the battery. Pay attention to the difference between the positive and negative electrodes. Generally speaking, the red wire is the positive electrode and the black wire is the negative electrode. Weld the positive electrode to the positive and negative terminals of the battery control board. Connect the negative terminal of the battery control board. Do not connect reversely, it will burn out the board. If the battery is soldered in parallel, when assembling the battery, pay attention to the insulation between the battery and the circuit board. Do not touch the battery wire to the circuit board to avoid short circuit or touch Electricity caused the final loss!
2. S-on the circuit board is connected to the negative pole of the solar panel, and S + is connected to the positive pole of the solar panel. Pay attention to the difference between the positive and negative poles. Generally speaking, the red wire is the positive pole and the black wire is the negative pole. Don’t connect it reversely, it will cause the solar panel to not work properly.
3. The red wire of the terminal wire is connected to the + pole of the LED light board, and the black wire is connected to the-pole of the LED light board. Pay attention to the difference between positive and negative poles. Don’t connect it backward, it will cause the light board not to light up.
4. As for the battery, you generally need to manually weld the power cord by yourself. Pay attention to the welding position of the power supply positive and negative poles on the battery control board, and locate the positive and negative poles of the battery. When soldering, it is best to put on an electrostatic wristband before soldering to avoid damaging the electronic components of the battery control board due to induced electricity. After the welding is completed, check the product quality. After confirming that it is correct, you can use a for Phillips to cover the mobile power box, tighten the screws, and the assembly is complete.
Package List:
1 * Solar Power Bank Case Kit
Package List:
1 * Solar Power Bank Case Kit
or
Environmental friendly and power saving, automatically enter sleep mode and lock the power while not in use.
Supports solar fast charge, safe and environmental friendly, suitable for sport, travel, and other outdoor activities.
IP6 waterproof protection and printed circuit board assembly, fully protect your devices from water, overload, overcharge, overheat and short‑circuit while charging.
Provides dual USB ports, you can easily charge for two devices at the same time, or share this backup power with your families or friends.
Works with 2pcs 606090 or 706090 batteries, 8000mAh or 10000mAh large capacity is easy to obtain, you can easily charge for your phone anytime and anywhere.
